العلامة التجارية

SAUDI EGA

اللون

أبيض | أسود

المواصفات التقنية

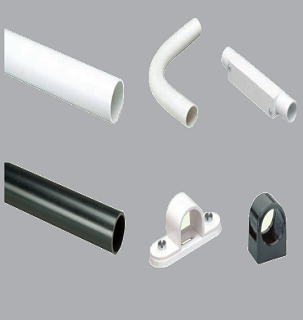

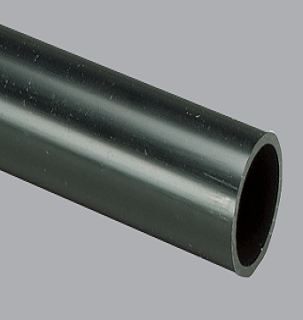

Saudi Ega conduit is available in 3 main types:

BSEN 61386 – Heavy Duty, Medium Guage Conduits

UPVC Conduits complying with BSEN61386-Part-1

Standard length 2.9m Black or White. Outside Diameter: 20mm to 50mm. Manufactured in accordance with the BSEN 61386 Part-1 medium mechanical stress. It provides excellent physical properties for flush and surface applications where heavy compressive strength is not required.

BSEN 61386 – Very Heavy Duty, Heavy Guage Conduits

BSEN 61386 Part-1 Conduits High Impact Heavy gauge

Standard length 2.9m Black or White. Outside Diameter: 20mm to 50mm. Manufactured in accordance with the BSEN 61386 Part-1 heavy mechanical stress and complies with all relevant requirement of the 16th edition of IEE wiring regulation and provide a high degree of protection.

US Sch. 40 Conduits

Standard length 3m Grey. Outside Diameter: 1/2" to 4". Manufactured to NEMA TC -2 and UL 651 specifications, it provides a high degree of protection.

SASO Conduits

SSA 254/255 Conduits

Standard length: 3m Black or White. Outside Diameter: 20mm - 25mm - 32mm. Manufactured in accordance with the Saudi Standard SSA 254/255. It provides excellent physical properties for flush and surface applications where heavy compressive strength is not required. Certified with SASO Quality Mark.

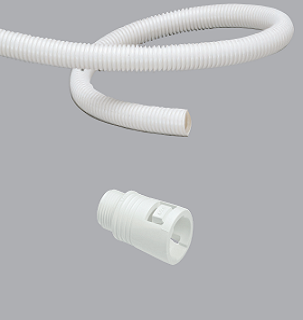

EGAFLEX

The Egaflex PVC conduit range is a corrugated flexible system which can be used for the connection of vibrating equipment or to provide tight bends for interconnecting conduits. The range can be surface mounted or cast-in-concrete and can also be used with standard conduit fittings. Manufactured in accordance with BS 4607 Part 3.

MATERIAL: PVC-U

Color: White or Black

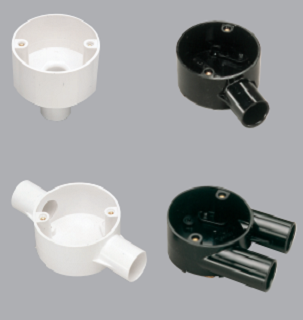

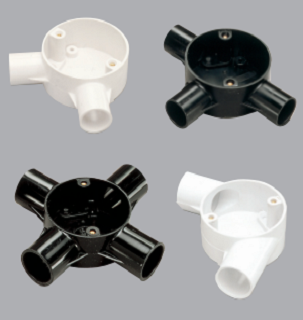

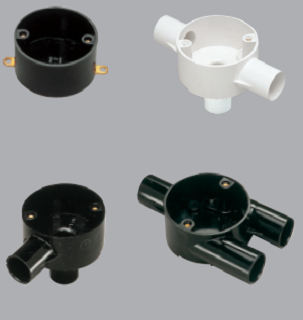

CIRCULAR BOXES

MATERIAL: PVC-U

LID FIXING CENTRES: 50 .8mm

PILLAR THRED SIZE: M4 (Brass Inserts)

All Boxes contain a molded recess for earth terminal.

For 16mm size use 20mm fitting with reduces (Ref. ER/1)

Some circular boxes are available with extended lugs for the support of heavy loads.

LOAD SUSPENSION:

Standerd Circular Box: 3kg. @ 60ºc max.

Extended Lug Box : 10kg @ 60ºc Max.

نظرة عامة عن المنتج وإستخداماته

MK Cable Management (Saudi Arabia) Ltd.  (Formerly Saudi Ega Ltd.) is a joint venture company with MK Electric, UK (part of Honeywell, USA) and is proud to be recognized throughout the Kingdom as the leading producer of high-quality uPVC Conduit, fittings, and mini trunking.

Egatube high impact PVCu conduit offers a cost-effective solution for both new and refurbishment contracts. The conduit is available in 4 grades of round sections (5 sizes of each) and as a flexible corrugated version (2 sizes). The wide range of fittings and ancillary products means that almost any installation can be specified for with confidence.

Egatube conduits are light in weight, the smaller sizes can be bent cold and they can easily be cut using a hacksaw or Egasnips. This means that installation can be 50% quicker than using steel. Repairs and alterations are also simpler and quicker to make.
